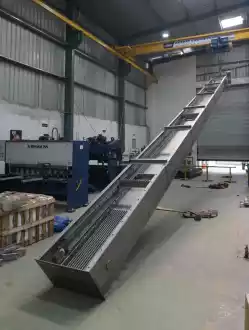

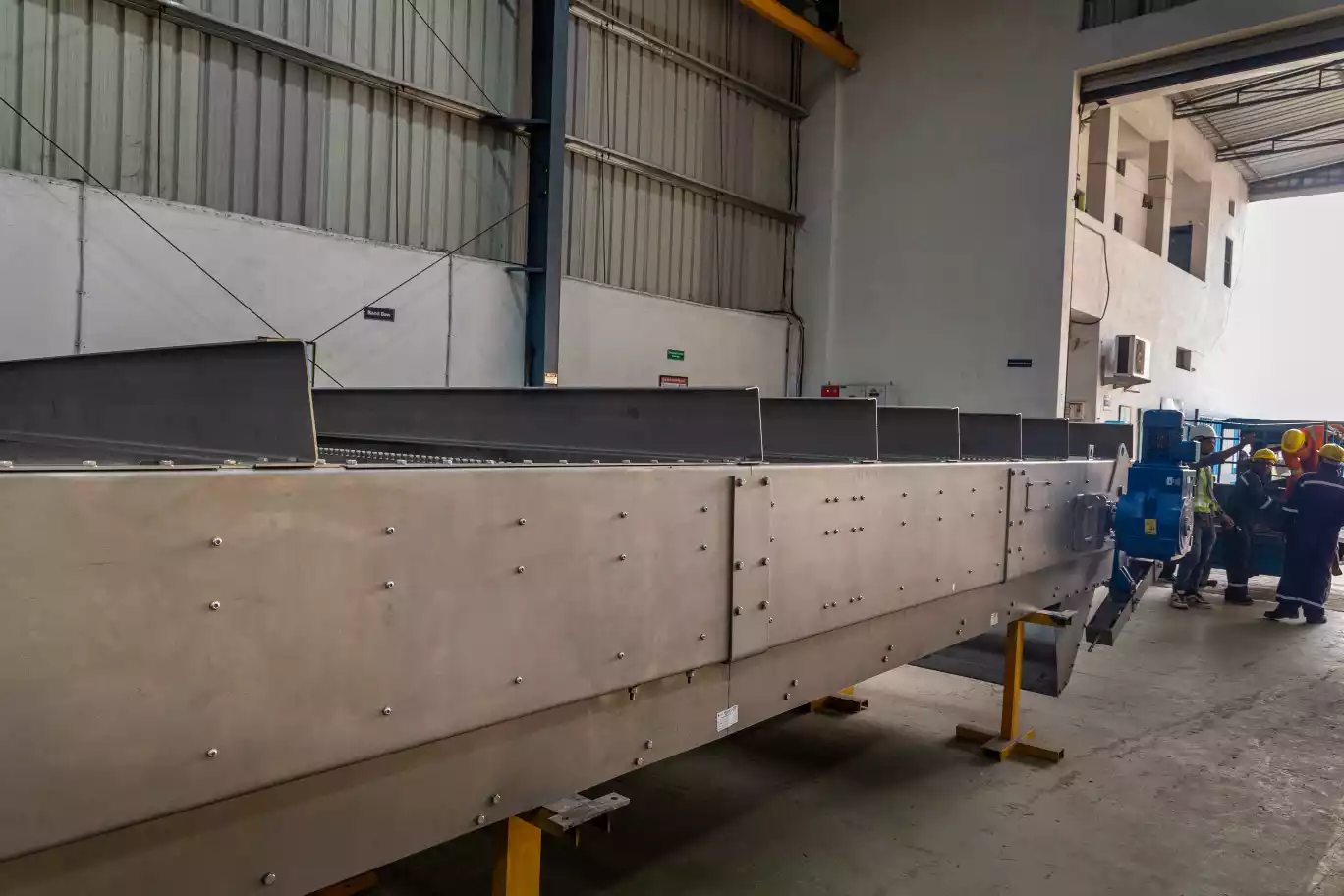

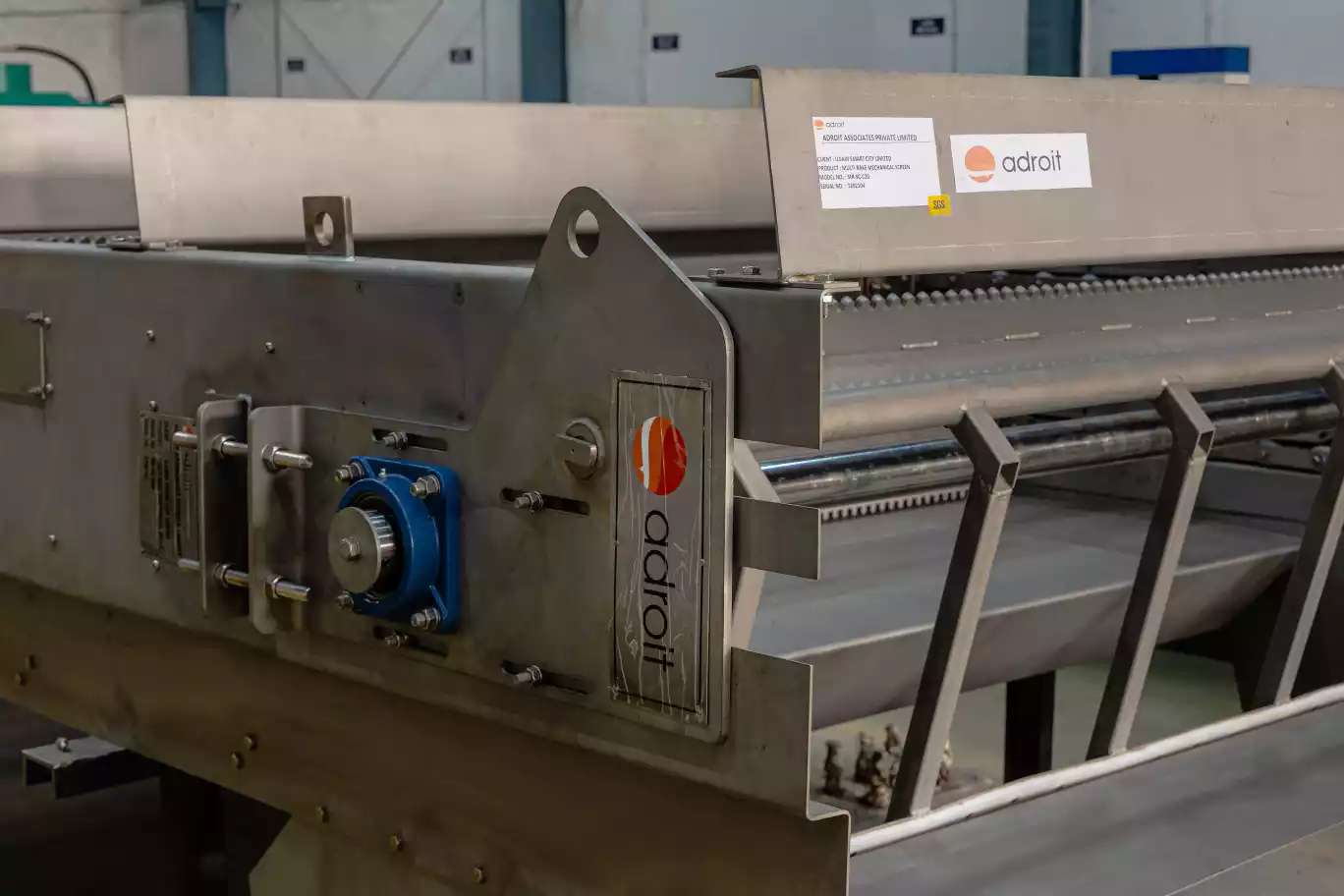

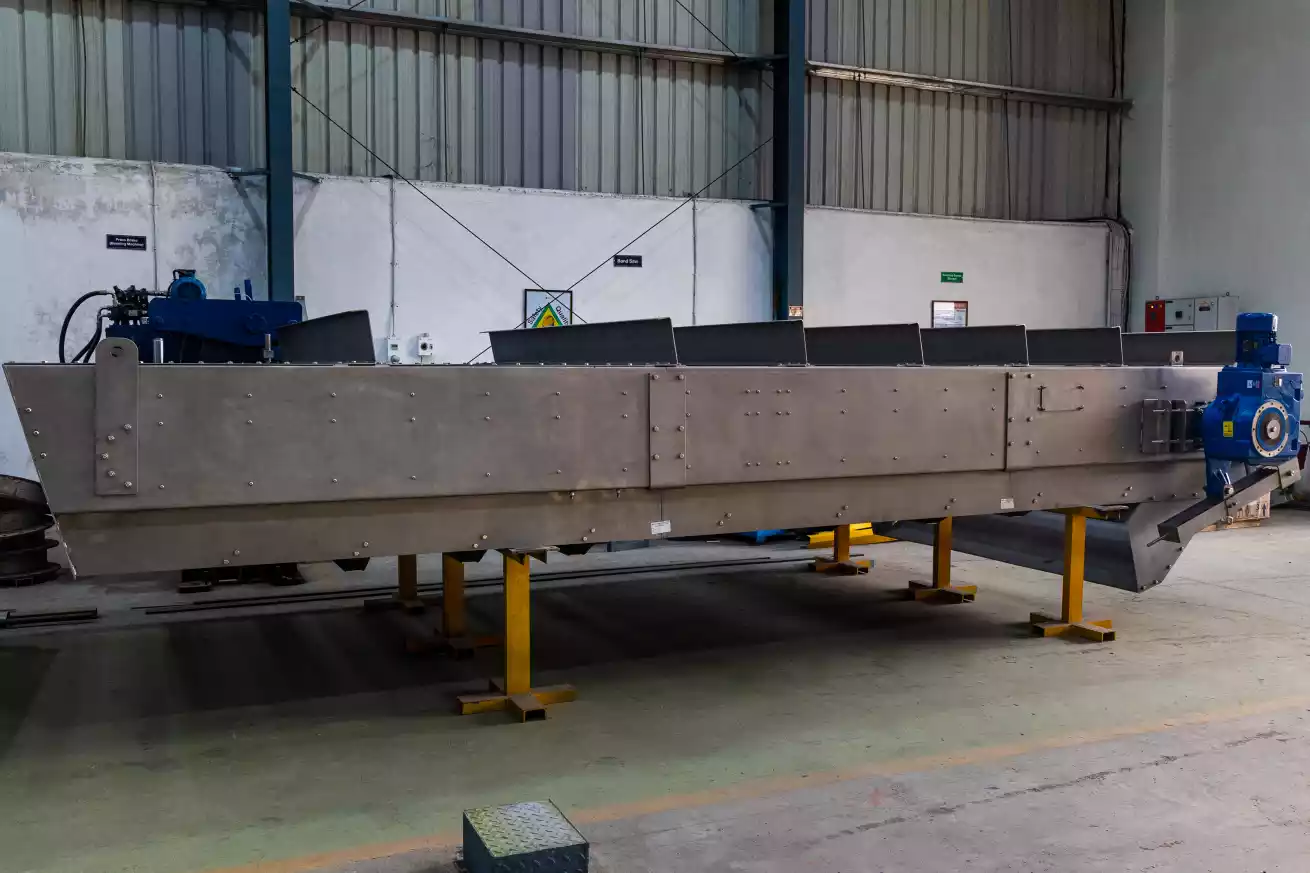

Multi-rake Mechanical Bar Screen is an equipment used in preliminary level of water & wastewater treatment to mechanically remove coarse and fine floating waste & solids from the flow to prevent damage and clogging of downstream equipment and piping. It consists of rake bars connected to a rotating chain. As water flows, the rake bars lift and move the trash to the top of the discharge chute for extraction. This screen is designed for screening flow entering treatment plants, pumping stations, stormwater outfalls, or industrial settings. The filtration, bar thickness, material of construction, and number of rakes are chosen according to the type and quantity of material and considering the depurative process scheme adopted.
The equipment is composed of a screen with a spacing that can vary from 3mm to 100 mm. The screenings are lifted, transported upwards, and discharged using rakes, that are suitable for cleaning the filtration area. Rakes are guided by a chain drive system that engages the rakes and moves in a continuous loop. The chain drive system at the bottom does not have any bearings/mechanical components submerged by the raw water allowing unobstructed operation.
Bar Spacing : 3mm to 100mm
Channel Width : 400mm to 3000mm
Channel Depth : 1000mm to 20000mm
Material : Stainless Steel 304/316
Adroit’s Rakeflow Multi-rake Mechanical Bar Screen is an efficacious and reliable solution for industrial and municipal water/wastewater treatment requirements. Our Rakeflow® Multi Rake Bar Screen stands out as superiorly designed equipment, offering unmatched quality, efficiency, and durability. It is used in screening water and wastewater in primary treatment. It is used in sewage treatment units, stormwater drains, and industrial wastewater setups, guaranteeing efficient screening of floating waste, sustaining flow rates, and protecting downstream equipment and piping from damage.
Adroit has valuable experience and expertise of more than 35 years in the industry of water and wastewater treatment. Adroit specializes in the design and manufacturing of equipment for Sewage Treatment Plants (STPs) and Water Treatment Plants (WTPs). With a commitment to innovation and excellence, Adroit has established itself as a trusted name in the water and wastewater treatment industry.
At Adroit, we take pride in delivering high-performance, durable, and cost-effective solutions that cater to the evolving needs of municipal and industrial water treatment sectors. Here we will showcase how the Multi Rake Bar Screen works, its application, features, and more.
If you want to know more about the product, then you can contact us through the below-mentioned details –
Phone – +91 70248-48383.
Email – [email protected].
You can also fill out the inquiry form on our website.
These screens are commonly used in municipal wastewater treatment plants, pumping stations, stormwater drain outfalls, industrial treatment plants, effluent treatment plants, and irrigation systems.
Our team shall help you assess based on your needs, factors like channel dimensions, flow rate, type of waste expected, and your specific site conditions to recommend the best solution.
Our screens are typically constructed from high-grade stainless steel 304 & 316 and other corrosion-resistant materials, ensuring longevity and performance even in challenging conditions.
Maintenance frequency depends on the specific application and waste load. However, these systems are designed for low-maintenance operation, with regular inspections and occasional greasing being sufficient in most cases.
Yes, our equipment is designed for low energy consumption while providing high efficiency in waste removal.
Delivery time may vary based on specifications and quantity. Typically, mechanical screen orders are manufactured within 4-6 weeks from manufacturing clearance.
Adroit provides comprehensive support from installation of this equipment at your site to after-sales service, including maintenance support, spare parts, and technical assistance.
